Bleeding

The presence of excess asphalt binder on the pavement surface is known as Bleeding. Although bleeding can occur anywhere on the pavement surface, it is of most concern in the wheel-paths as it can impact driver safety.

Surfaces with Bleeding are visibly darker and texture is reduced as the severity of Bleeding increases. High-severity Bleeding can completely obscure the aggregate leading to very low texture.

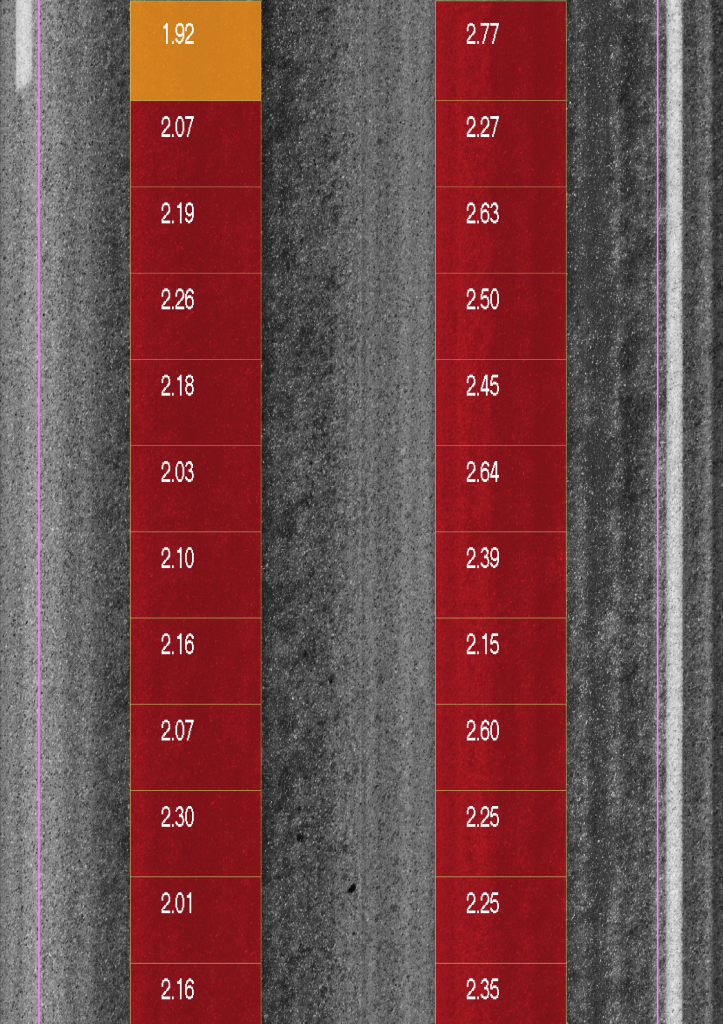

PavemetricsTM Laser Crack Measurement System (LCMSTM-2) Bleeding algorithm analyzes wheel-path pavement and reports Bleeding according to three user-customizable severity levels: Light, Medium and Severe. Percentage of each wheel-path falling into the Severe category is also reported in order to help flag the most critical locations.

AASHTO

PP68; Can collect images of pavement surfaces

ASTM

D5340; Can be used for airport condition index surveys
D6433; Can be used for Roads and parking lot pavement condition index surveys

FHWA

Distress Indentification Manual for the Long-Term Pavement Performance Program (Bleeding)

Related Articles

Using Full Lane 3D Road Texture Data for the Automated Detection of Sealed Cracks, Bleeding and Raveling
Authors: John Laurent, Jean-François Hébert and Mario Talbot (Pavemetrics)
